Online Low-E Coated Glass (Hard Coated)

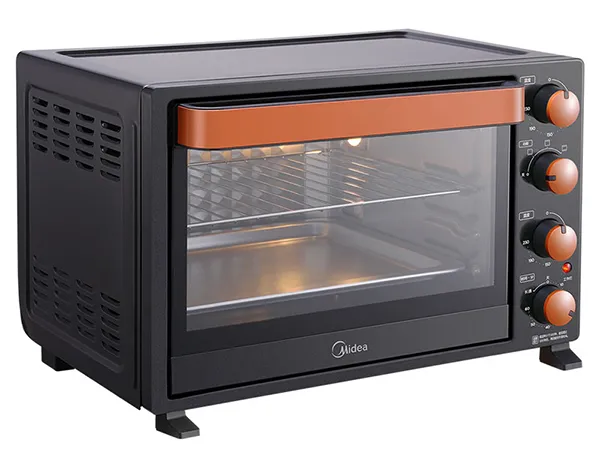

Our online low-E coated glass utilizes state-of-the-art chemical vapor deposition (CVD) technology, where the coating is fused with the glass at high temperatures, resulting in exceptional chemical and mechanical stability. This innovative approach ensures an optimized balance of transmittance and conductivity, making our glass ideal for residential housing, commercial glass walls, electric appliance, and transportation applications.
- We employ advanced CVD technology, which imparts superior performance characteristics to our glass.
- The integrated coating helps regulate indoor temperatures: in winter, it reflects heat back into the building to prevent heat loss; in summer, it reduces incoming secondary radiation, cutting down on air conditioning costs.
- The annealed and cooled coating merges seamlessly with the glass, resulting in a hard, durable layer that resists scratching and wear.
- The coating’s neutral color aligns with the glass itself, enhancing aesthetic appeal and visibility.
- The stable properties of our glass ensure a long shelf life, and it remains effective even when exposed to air for extended periods.
- The coating is easy to clean and suitable for various processing techniques, including IGUs, bending, tempering, and lamination.
- Unlike offline low-E glass, our online low-E glass can be used as a single pane, making it versatile for use in curtain walls, doors, windows, etc.
- Thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm
- Common size: 2134×3300/3660mm, 2250×3300/3660mm, 2440×3300/3660mm
- Other sizes are customizable
We precisely control the resistivity for glass processing, facilitating efficient heat control for electrically heated glass.
Our coatings are available in various thicknesses (3.2–12 mm), with a wide range of sheet resistances.
The robust adherence of the online coating makes it resistant to scratches and abrasion and compatible with different models of processing equipment.
Apart from its neutral color and natural appearance, the coating has low reflectivity to ensure high visibility.
With its stable performance, our coating is non-discoloring and non-oxidizing, which helps to save energy and cut budgets.
Our highly versatile coating allows for various shapes and uses, including lamination, bending, tempering, and silk screening, with no need for edge deletion for IGUs.
| TEK6 | TEK10 | TEK15 | TEK35 | TEK70 | TEK250 | Instrumentation | ||
| Thickness (mm) | 4mm/3.2mm, ±0.1mm | 4mm/3.2mm, ±0.1mm | 4mm/3.2mm, ±0.1mm | 4mm/3.2mm, ±0.1mm | 4mm/3.2mm, ±0.1mm | 4mm/3.2mm, ±0.1mm | Micrometer | |
| Visible Light Transmittance (%) | ≥80 | ≥82 | ＞83 | ≥83 | ＞83 | ＞83 | Hazegard | |
| Coating Reflectance (%) | ≤11 | ≤11 | ＜12 | ＜12 | ＜12 | ＜12 | HunterLab | |
| Haze (%) | ≤5 | ≤1.7 | ≤1 | < 1 | ≤1 | ≤1 | Hazegard | |
| Sheet Resistance (Ω/□) | Before temper | 6-8 | 8.0-9.5 | 12-14 | 34-38 | 60-68 | 260-320 | Four-point probe /Nagy sheet resistance meter |
| After temper | 6-8 | 9.0-10 | 12-14 | 38-40 | 64-72 | 252-300 | ||
| E-Value | ＜0.10 | ＜0.12 | ＜0.15 | ＜0.35 | ＜0.45 | ＜0.67 | ||
| Color Uniformity | ΔE*ab≤0.8 | ΔE*ab≤0.8 | ΔE*ab≤0.8 | ΔE*ab≤0.8 | ΔE*ab≤0.8 | ΔE*ab≤0.8 | 1 pcs glass (310mm×310mm) | |

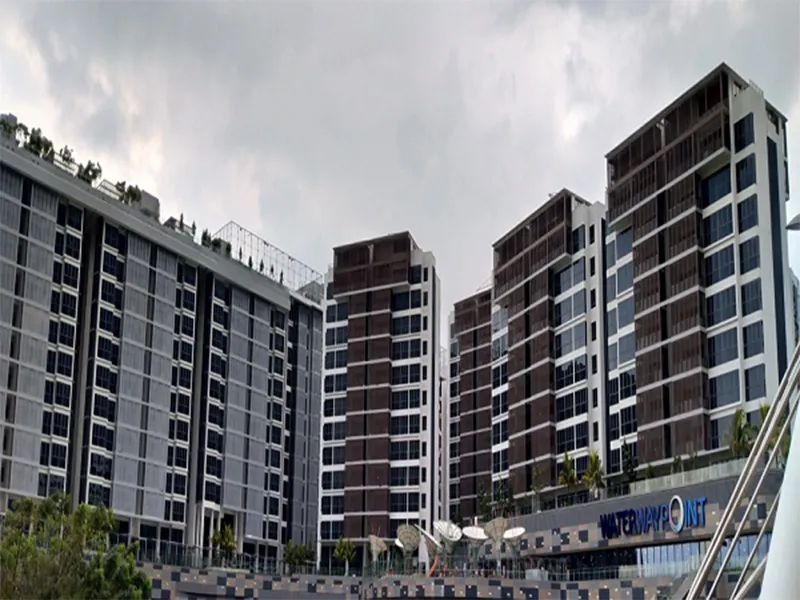

- Project Name: Water Way Piont
- Location: Singapore
- Glass: 5mm euro grey tempered/1.52PVB/5mm online low-E tempered
