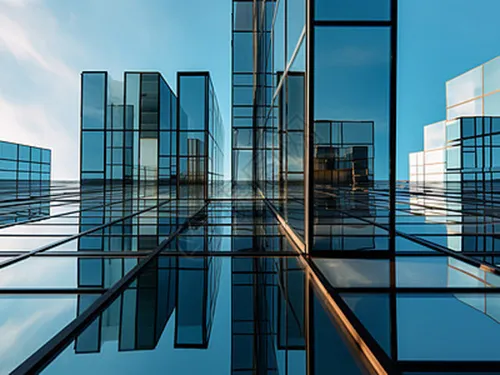

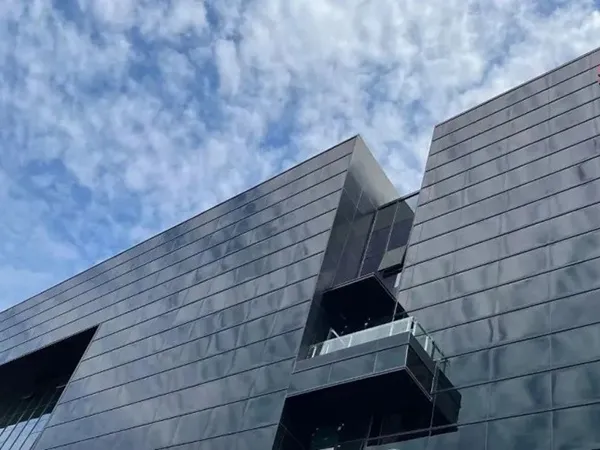

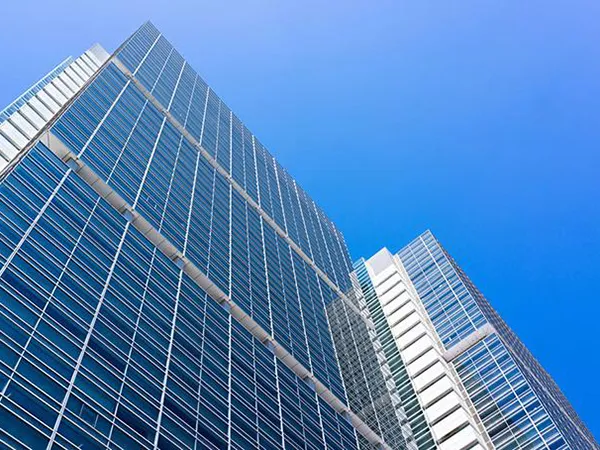

Glass Facades & Curtain Walls

Our glass is applied in glass facades or curtain walls, architectural enclosures that support relative movement to the main structure without bearing its load. Available in single and double-layer glass, our glass products feature exceptional clarity, durability, and energy efficiency. Our glass is perfect for glass facades and curtain walls, providing superior thermal insulation, soundproofing, and aesthetic appeal.

Glass Facades & Curtain Walls
Glass Facades & Curtain Walls
Advantages
  • Our comprehensive quality control system covers every stage from raw material to cutting, edging, tempering, lamination, and insulating, ensuring the highest standards for our glass products.

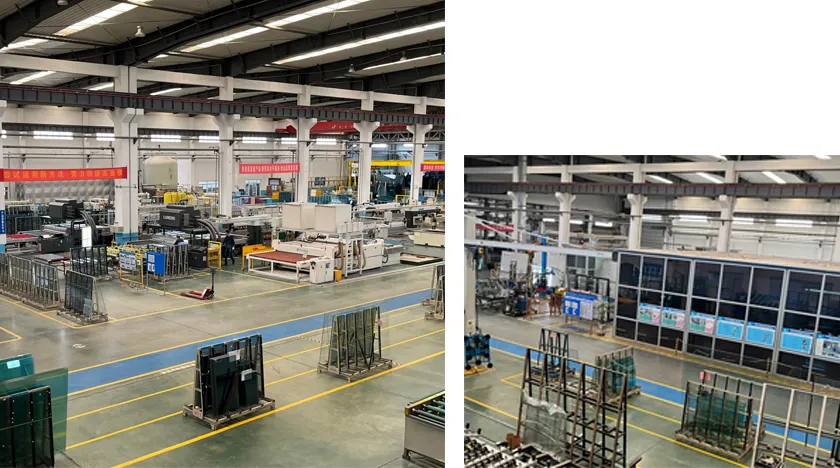

  • We ensure high quality glass products through a comprehensive production chain and in-house processing, with 14 float glass production lines, 6 coated glass production lines, 2 glass processing bases, 7 tempering furnaces, 2 laminated glass production lines, and 3 insulated glass production lines. We operate a total of 13 production bases, including an overseas plant in Malaysia with 2 float glass production lines. Our annual capacity includes 20 million square meters of online low-E coated glass production and 10 million square meters of offline low-E coated glass production. Equipped with advanced machinery from Lisec, Bottero, Glaston, and Bystronic, we guarantee optimal glass quality and performance.
  • With 38 years of export experience, we provide expert consultation and supply high-quality, stable products to hundreds of global construction projects.
  • We invest $15 million annually in R&D, with a 6,000 sqm laboratory and strong R&D and technical support teams to deliver advanced, high-performance glass solutions to our customers.
Performance Data
Product Configuration Colour Visible Light Sunlight NFRC 2010 EN673 JGJ151
Tvis (%) Rvis (%) U-Value
 (W/m2.K) 		SC (%) SHGC (%) LSG (%) U-Value
 (W/m2.K) 		K-Value
 (W/m2.K) 		SC(%) GIR(%)
Out In Tsol (%) Rsol (%) Air Argon Air Argon Air Argon
Winter Summer Winter Summer
6Solarban 72+12A+6Ultra-clear Grey 70 16 17 27 56 1.66 1.60 1.38 1.29 0.33 0.29 2.41 1.60 1.27 1.66 1.39 0.37 0.02
6Solarban 72+16A+6Ultra-clear Grey 70 16 17 27 56 1.70 1.34 1.44 1.08 0.33 0.29 2.41 1.35 1.14 1.71 1.45 0.36 0.02
6Solarban 70+12A+6Clear Grey 68 15 15 26 40 1.62 1.56 1.34 1.23 0.34 0.30 2.27 1.55 1.22 1.63 1.36 0.37 0.04
6Solarban 70+16A+6Clear Grey 68 15 15 26 40 1.67 1.29 1.40 1.01 0.34 0.30 2.27 1.31 1.08 1.68 1.42 0.37 0.04
6Solarban 60UC+12A+6Ultra-clear Grey 79 14 14 43 44 1.67 1.62 1.39 1.31 0.51 0.44 1.80 1.61 1.28 1.67 1.41 0.55 0.14
6Solarban 60UC+16A+6Ultra-clear Grey 79 14 14 43 44 1.71 1.36 1.45 1.09 0.51 0.44 1.80 1.37 1.15 1.72 1.46 0.55 0.14
6T55NT+12A+6Clear Blue 50 10.2 11.6 20 29 1.69 1.65 1.42 1.34 0.29 0.25 2.00 1.64 1.32 1.70 1.43 0.31 0.05
6UD80+12A+6Ultra-clear Neutral 73 13 14 38 41 1.66 1.60 1.38 1.29 0.46 0.40 1.85 1.60 1.27 1.66 1.39 0.49 0.12
6UD80+16A+6Ultra-clear Neutral 73 13 14 38 41 1.70 1.34 1.44 1.08 0.45 0.39 1.87 1.35 1.14 1.71 1.45 0.49 0.12
6UD70+12A+6Ultra-clear Powder Blue 65 16 18 35 35 1.72 1.69 1.45 1.39 0.43 0.38 1.71 1.67 1.36 1.73 1.46 0.46 0.14
6OUD70+16A+6Ultra-clear Powder Blue 65 16 18 35 35 1.76 1.44 1.51 1.19 0.43 0.37 1.76 1.44 1.23 1.77 1.52 0.46 0.14
6UD57+12A+6Ultra-clear Light Grey 55 16 14 26 42 1.69 1.64 1.41 1.34 0.34 0.29 1.83 1.63 1.31 1.69 1.43 0.37 0.08
6UD57+16A+6Ultra-clear Light Grey 55 16 14 26 42 1.73 1.39 1.47 1.13 0.33 0.29 1.89 1.39 1.18 1.74 1.49 0.36 0.08
6UD49+12A+6Ultra-clear Bluish Grey 48 15 13 23 44 1.69 1.64 1.41 1.34 0.30 0.26 1.85 1.63 1.31 1.69 1.43 0.33 0.07
6UD49+16A+6Ultra-clear Bluish Grey 48 15 13 23 44 1.73 1.39 1.47 1.13 0.30 0.26 1.85 1.39 1.18 1.74 1.49 0.32 0.07
6UD45+12A+6Ultra-clear Silver grey 42 26 15 18 52 1.68 1.63 1.40 1.32 0.24 0.21 2.00 1.62 1.30 1.68 1.42 0.26 0.05
6UD45+16A+6Ultra-clear Silver grey 42 26 15 18 52 1.72 1.38 1.46 1.11 0.24 0.21 2.00 1.38 1.17 1.73 1.48 0.26 0.05
6US1.16+12A+6Ultra-clear Neutral 83 14 14 60 30 1.72 1.68 1.45 1.38 0.71 0.62 1.34 1.67 1.36 1.72 1.46 0.73 0.43
6US1.16+16A+6Ultra-clear Neutral 82 14 14 60 30 1.76 1.44 1.50 1.18 0.71 0.61 1.34 1.43 1.22 1.77 1.52 0.73 0.43
6S1.16+12A+6Clear Neutral 79 13 13 50 24 1.72 1.69 1.45 1.39 0.65 0.57 1.39 1.67 1.36 1.73 1.46 0.68 0.37
6S1.16+16A+6Clear Neutral 80 13 13 50 24 1.76 1.44 1.51 1.19 0.65 0.57 1.40 1.44 1.23 1.77 1.52 0.68 0.36
6US83+12A+6Ultra-clear Neutral 79 12 13 56 24 1.74 1.71 1.47 1.42 0.67 0.59 1.34 1.70 1.39 1.74 1.48 0.70 0.41
6US83+16A+6Ultra-clear Neutral 79 12 13 56 24 1.78 1.47 1.53 1.22 0.67 0.58 1.36 1.46 1.25 1.79 1.54 0.69 0.41
6S83+12A+6Clear Neutral 75 12 13 46 20 1.75 1.72 1.48 1.43 0.61 0.53 1.42 1.71 1.40 1.75 1.49 0.64 0.34
6S83+16A+6Clear Neutral 75 12 13 46 20 1.78 1.48 1.54 1.23 0.61 0.53 1.42 1.47 1.26 1.79 1.55 0.64 0.34
Notes:
1. Above performance data are calculated according to standards NFRC 2010, EN673 and JPG151.
2. The performance data are only for reference. Jinjing will hold the right of final interpretation.
3. Light-to-solar gain (LSG) ratio is the ratio of visible light transmittance to solar heat gain coefficient.
4. The make-up with argon means the cavity is filled with a 90% argon+10% air mixture.
Certificates
  • PPG
  • CE
  • CIDB
  • ISO
  • SGS
  • REACH
Projects

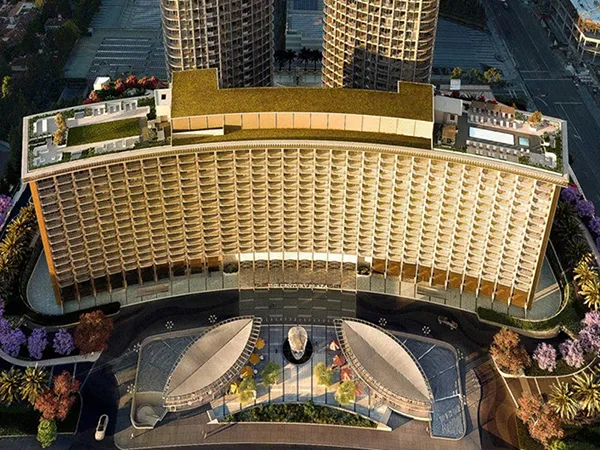

New Century Plaza

New Century Plaza

  • Location: Los Angeles, USA
  • Glass: 8mm Solarban72 +16A+13.52mmPVB laminated for curtain wall
  • Quantity: 8000 SQM

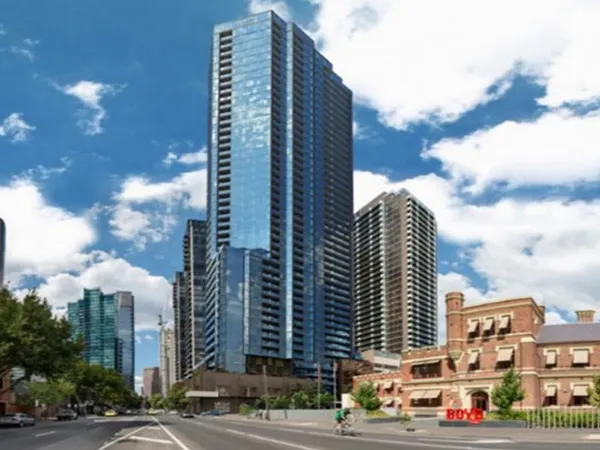

Southbank Central Apartment

Southbank Central Apartment

  • Location: Melbourne, Australasia
  • Main Products: 6mm D49+12A+8.38mm
    6mm D49+12A+10.38mm
  • Quantity: 2500SQM

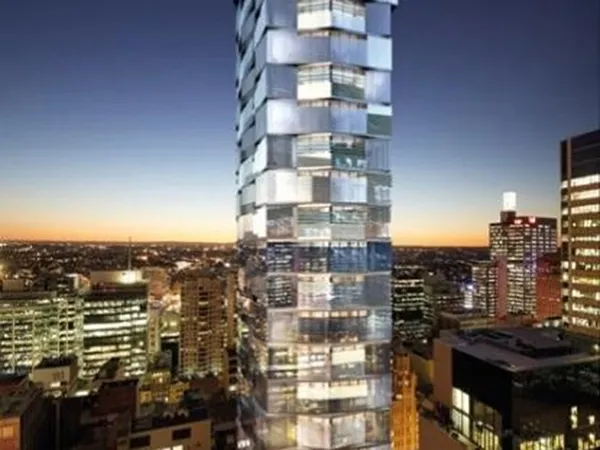

York & George

York & George

  • Location: Sydney, Australia
  • Glass: 6mm D49+12A+10.38mm
  • Quantity: 7300 SQM

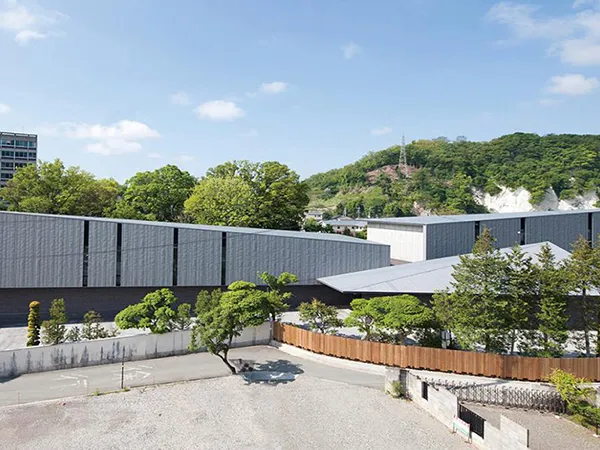

Nagano-ken, Japan

Nagano-ken, Japan

  • Glass: 6mm Solarban70+6A+6mm clear glass
  • Quantity: 1000SQM

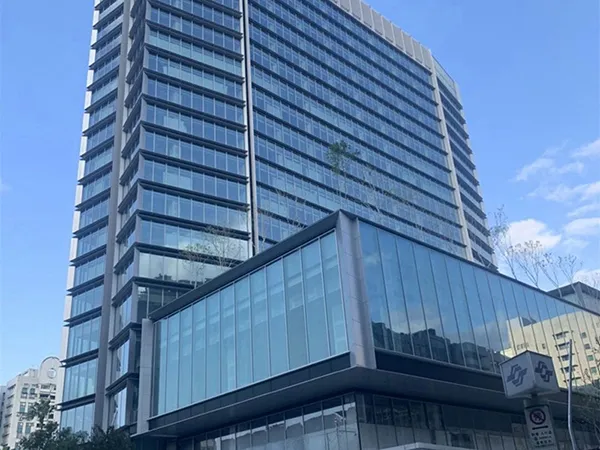

FUBANG CHANGCHUN

FUBANG CHANGCHUN

  • Location: Taiwan, China
  • Glass: 10.3M Laminated IGU with Double Silver Low-E Coating

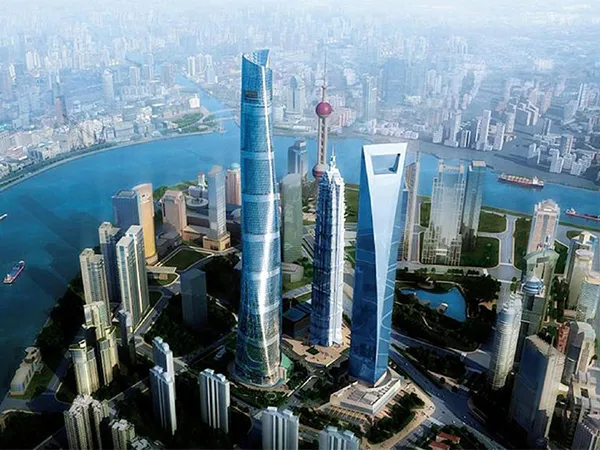

Shanghai Tower

Shanghai Tower

  • Location: Shanghai China
  • Glass: 8mm/ 10mm 12mm ultra clear glass for curtain wall & glass ribs
  • Quantity: 1 million sqm ultra clear glass

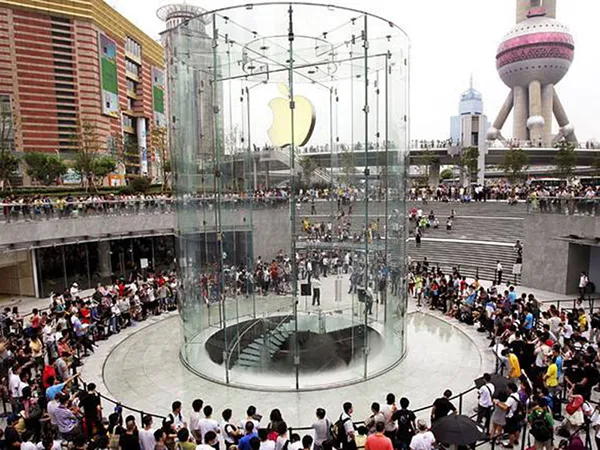

Apple Store

Apple Store

  • Location: Shanghai China
  • Glass: 12mm /15mm ultra clear glass for curtain wall, beams & stairs
Recommended Glass
Tempered Glass (Toughened Glass)
Tempered Glass (Toughened Glass) Find Out More

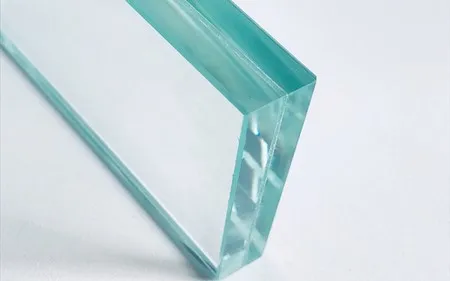

Laminated Glass
Laminated Glass Find Out More

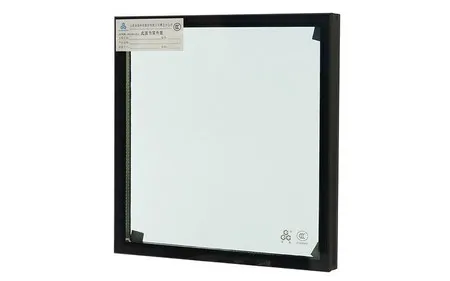

Insulated Glass
Insulated Glass Find Out More
Need More Support?

Need more information about the glass products?

Whether you're designing skyscrapers, renovating homes, or crafting museum displays, our team of experts is here to help you select the perfect glass for your project.
