Glass Doors & Windows

Our glass doors and windows, using transparent and smooth glass sheets, not only serve to provide light and aesthetics, but also have specialized functions, such as heat insulation, bird collision prevention, bullet resistance, fire resistance, and sound absorption. We offer a variety of glass types for doors and windows, including standard tempered glass, laminated glass, insulated glass, and low-E coated glass. Standard tempered glass features high light transmittance and strong impact resistance; laminated glass enhances sound insulation and prevents injury from shattered glass; insulated glass improves thermal insulation; and low-E glass reflects part of the sunlight to provide heat insulation.

Glass Doors & Windows
Glass Doors & Windows
Advantages
  • We ensure high quality with a complete production chain, including 14 float glass lines, an online low-E coated glass production line with an annual output of 20 million sqm, an offline low-E coated glass production line with an annual output of 10 million sqm, and two glass processing bases.
  • We offer a diverse range of glass, including various colors, ultra clear, offline low-E coated glass, and single-silver, double-silver, and triple-silver low-E glass, in order to meet different design and performance requirements.
  • We are equipped with cutting-edge machinery from Lisec, Bottero, Glaston, and Bystronic, world-renowned suppliers, to guarantee superior quality and performance.
  • We invest $15 million annually in R&D, with a 6,000 sqm laboratory and strong R&D and technical support teams to deliver advanced, high-performance glass solutions to our customers.
  • Our comprehensive quality control system covers every stage from raw material to cutting, edging, tempering, lamination, and insulating, ensuring the highest standards for our glass products.
Performance Data
Product Configuration Colour Visible Light Sunlight NFRC 2010 EN673 JGJ151
Tvis% Rvis% U-Value
 (W/m2.K) 		SC (%) SHGC (%) LSG (%) U-Value
 (W/m2.K) 		K-Value
 (W/m2.K) 		SC (%) GIR (%)
Out In Tsol% Rsol% Air Argon Air Argon Air Argon
Winter Summer Winter Summer
6Solarban 72+12A+6Ultra-clear Grey 70 16 17 27 56 1.66 1.60 1.38 1.29 0.33 0.29 2.41 1.60 1.27 1.66 1.39 0.37 0.02
6Solarban 72+16A+6Ultra-clear Grey 70 16 17 27 56 1.70 1.34 1.44 1.08 0.33 0.29 2.41 1.35 1.14 1.71 1.45 0.36 0.02
6Solarban 70+12A+6Clear Grey 68 15 15 26 40 1.62 1.56 1.34 1.23 0.34 0.30 2.27 1.55 1.22 1.63 1.36 0.37 0.04
6Solarban 70+16A+6Clear Grey 68 15 15 26 40 1.67 1.29 1.40 1.01 0.34 0.30 2.27 1.31 1.08 1.68 1.42 0.37 0.04
6Solarban 60UC+12A+6Ultra-clear Grey 79 14 14 43 44 1.67 1.62 1.39 1.31 0.51 0.44 1.80 1.61 1.28 1.67 1.41 0.55 0.14
6Solarban 60UC+16A+6Ultra-clear Grey 79 14 14 43 44 1.71 1.36 1.45 1.09 0.51 0.44 1.80 1.37 1.15 1.72 1.46 0.55 0.14
6T55NT+12A+6Clear Blue 50 10.2 11.6 20 29 1.69 1.65 1.42 1.34 0.29 0.25 2.00 1.64 1.32 1.70 1.43 0.31 0.05
6UD80+12A+6Ultra-clear Neutral 73 13 14 38 41 1.66 1.60 1.38 1.29 0.46 0.40 1.85 1.60 1.27 1.66 1.39 0.49 0.12
6UD80+16A+6Ultra-clear Neutral 73 13 14 38 41 1.70 1.34 1.44 1.08 0.45 0.39 1.87 1.35 1.14 1.71 1.45 0.49 0.12
6UD70+12A+6Ultra-clear Powder Blue 65 16 18 35 35 1.72 1.69 1.45 1.39 0.43 0.38 1.71 1.67 1.36 1.73 1.46 0.46 0.14
6OUD70+16A+6Ultra-clear Powder Blue 65 16 18 35 35 1.76 1.44 1.51 1.19 0.43 0.37 1.76 1.44 1.23 1.77 1.52 0.46 0.14
6UD57+12A+6Ultra-clear Light Grey 55 16 14 26 42 1.69 1.64 1.41 1.34 0.34 0.29 1.83 1.63 1.31 1.69 1.43 0.37 0.08
6UD57+16A+6Ultra-clear Light Grey 55 16 14 26 42 1.73 1.39 1.47 1.13 0.33 0.29 1.89 1.39 1.18 1.74 1.49 0.36 0.08
6UD49+12A+6Ultra-clear Bluish Grey 48 15 13 23 44 1.69 1.64 1.41 1.34 0.30 0.26 1.85 1.63 1.31 1.69 1.43 0.33 0.07
6UD49+16A+6Ultra-clear Bluish Grey 48 15 13 23 44 1.73 1.39 1.47 1.13 0.30 0.26 1.85 1.39 1.18 1.74 1.49 0.32 0.07
6UD45+12A+6Ultra-clear Silver grey 42 26 15 18 52 1.68 1.63 1.40 1.32 0.24 0.21 2.00 1.62 1.30 1.68 1.42 0.26 0.05
6UD45+16A+6Ultra-clear Silver grey 42 26 15 18 52 1.72 1.38 1.46 1.11 0.24 0.21 2.00 1.38 1.17 1.73 1.48 0.26 0.05
6US1.16+12A+6Ultra-clear Neutral 83 14 14 60 30 1.72 1.68 1.45 1.38 0.71 0.62 1.34 1.67 1.36 1.72 1.46 0.73 0.43
6US1.16+16A+6Ultra-clear Neutral 82 14 14 60 30 1.76 1.44 1.50 1.18 0.71 0.61 1.34 1.43 1.22 1.77 1.52 0.73 0.43
6S1.16+12A+6Clear Neutral 79 13 13 50 24 1.72 1.69 1.45 1.39 0.65 0.57 1.39 1.67 1.36 1.73 1.46 0.68 0.37
6S1.16+16A+6Clear Neutral 80 13 13 50 24 1.76 1.44 1.51 1.19 0.65 0.57 1.40 1.44 1.23 1.77 1.52 0.68 0.36
6US83+12A+6Ultra-clear Neutral 79 12 13 56 24 1.74 1.71 1.47 1.42 0.67 0.59 1.34 1.70 1.39 1.74 1.48 0.70 0.41
6US83+16A+6Ultra-clear Neutral 79 12 13 56 24 1.78 1.47 1.53 1.22 0.67 0.58 1.36 1.46 1.25 1.79 1.54 0.69 0.41
6S83+12A+6Clear Neutral 75 12 13 46 20 1.75 1.72 1.48 1.43 0.61 0.53 1.42 1.71 1.40 1.75 1.49 0.64 0.34
6S83+16A+6Clear Neutral 75 12 13 46 20 1.78 1.48 1.54 1.23 0.61 0.53 1.42 1.47 1.26 1.79 1.55 0.64 0.34
Notes:
1. Above performance data are calculated according to standards NFRC 2010, EN673 and JPG151.
2. The performance data are only for reference. Jinjing will hold the right of final interpretation.
3. Light-to-solar gain (LSG) ratio is the ratio of visible light transmittance to solar heat gain coefficient.
4. The make-up with argon means the cavity is filled with a 90% argon+10% air mixture.
Certificates
  • PPG
  • CE
  • CIDB
  • ISO
  • SGS
  • REACH
Projects

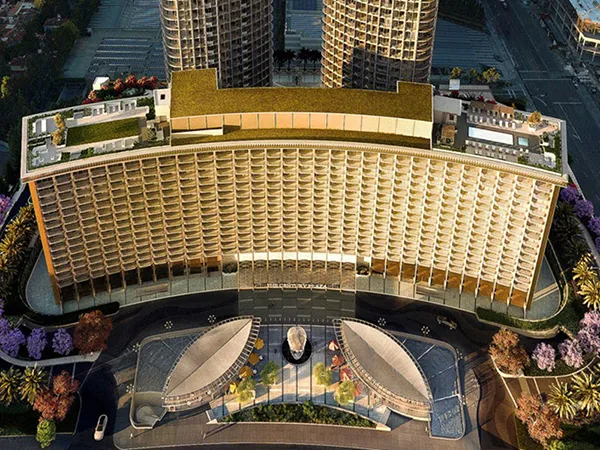

New Century Plaza

New Century Plaza

  • Location: Los Angeles, USA
  • Glass: 8mm Solarban72 +16A+13.52mmPVB laminated for curtain wall

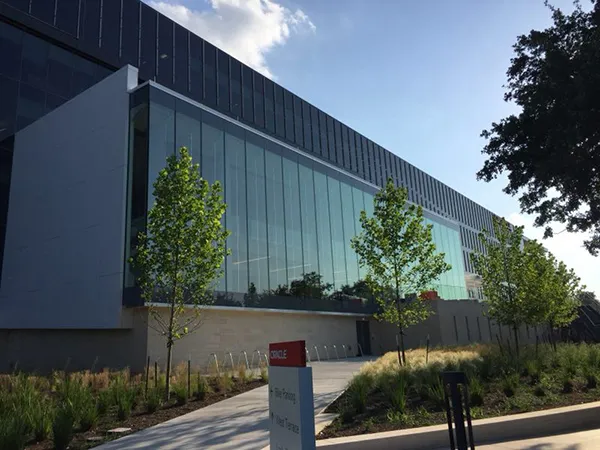

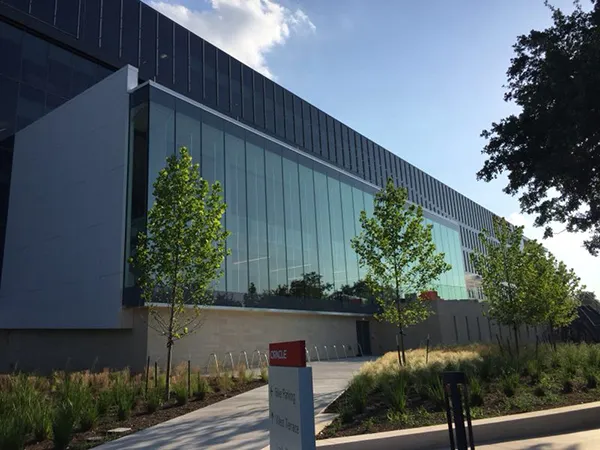

Oracle office

Oracle office

  • Location: Texas, USA
  • Glass: 9.4 meters 10mm Solarban72 insulated

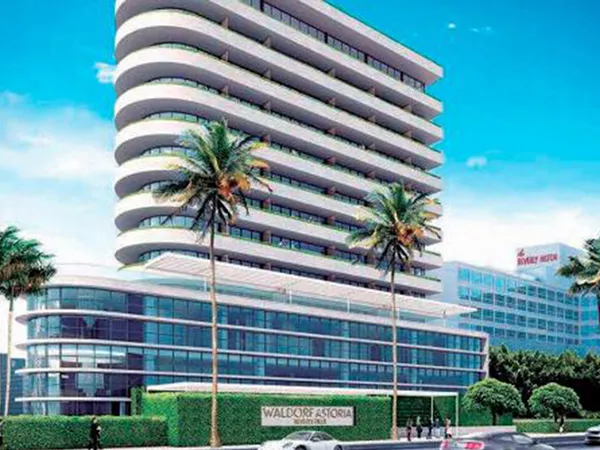

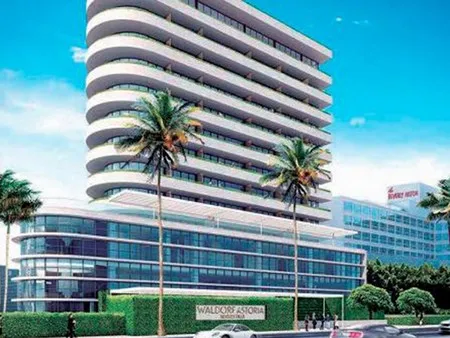

Wardorf Astoria

Wardorf Astoria

  • Location: USA
  • Glass: 6/10mm Solarban72 insulated

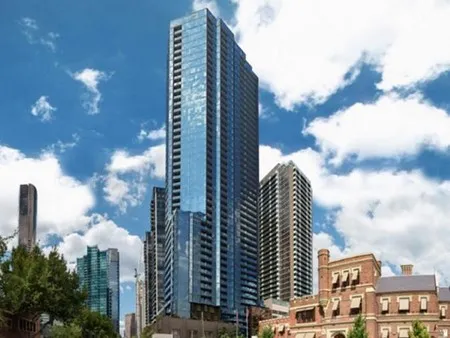

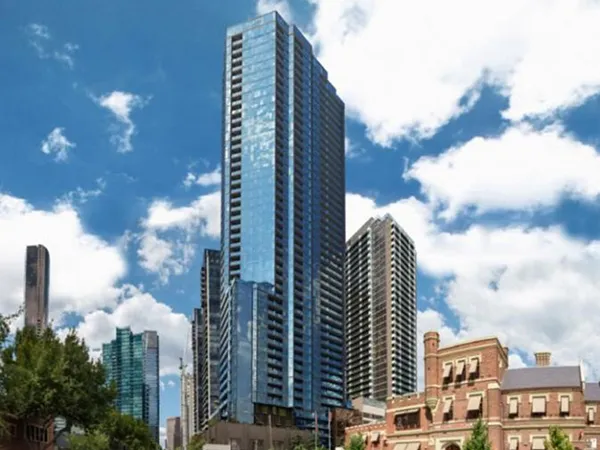

Southbank Central Apartment

Southbank Central Apartment

  • Location: Melbourne, Australasia
  • Main Products: 6mm D49+12A+8.38mm
    6mm D49+12A+10.38mm
The Exchange 106(Feature Wall)

The Exchange 106(Feature Wall)

  • Location : Kuala Lumpur Malaysia
  • Glass: 8mm UD80 + 9A +8mm ultra clear glass

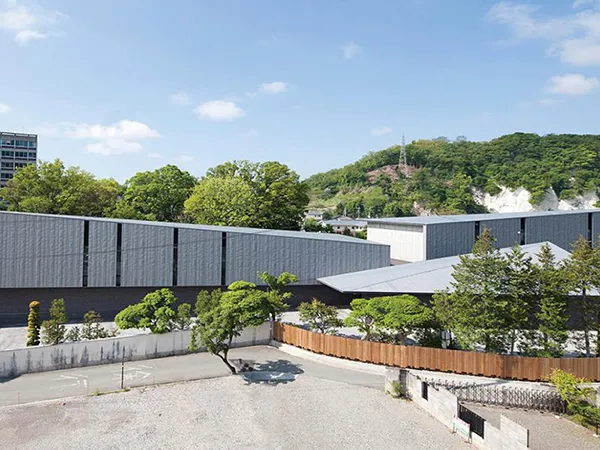

Nagano-ken, Japan

Nagano-ken, Japan

  • Glass: 6mm Solarban 70+6A+6mm clear glass
Recommended Glass
Offline Low-E Coated Glass (Soft Coated)
Offline Low-E Coated Glass (Soft Coated) Find Out More
Tempered Glass (Toughened Glass)
Tempered Glass (Toughened Glass) Find Out More
Laminated Glass
Laminated Glass Find Out More
Insulated Glass
Insulated Glass Find Out More
Need More Support?

Need more information about the glass products?

Whether you're designing skyscrapers, renovating homes, or crafting museum displays, our team of experts is here to help you select the perfect glass for your project.

Contact Us
