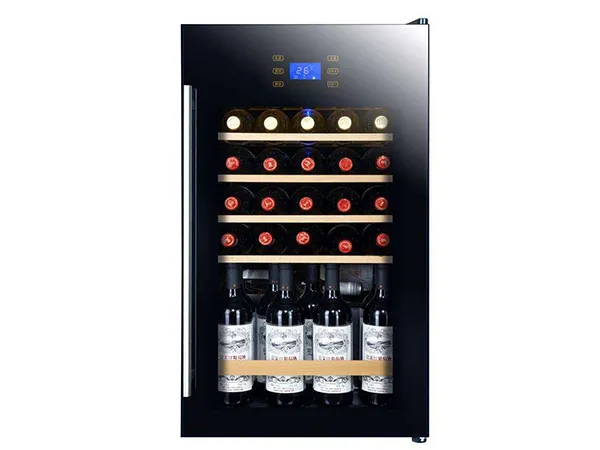

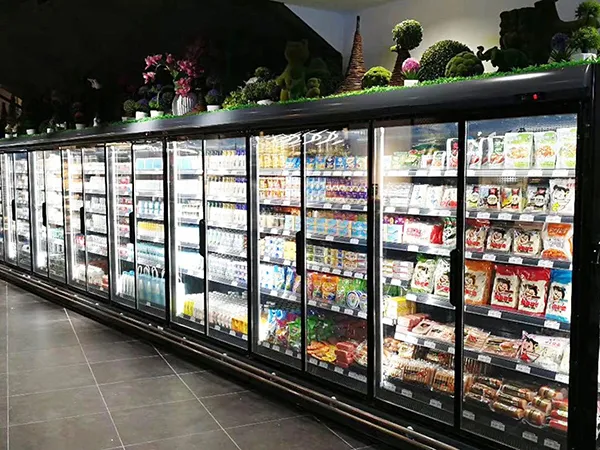

Glass Display Refrigerator & Freezer Doors

Glass display refrigerators and freezer doors use various shapes of tempered glass or laminated glass which excel in insulation, moisture resistance, and UV protection. These kinds of glass are widely used in food processing, transportation, and storage to ensure the safety and quality of food products. With superior thermal insulation and anti-mold properties, our glass for display refrigerators and freezer doors helps to maintain optimal temperature conditions.

Glass Shower Enclosures
Glass Shower Enclosures
Features
  • Offline low-E coated glass models, such as S1.16, S1.1Plus, and D80, feature high visible light transmission and low U-values, making them ideal for refrigerator door glass.
  • Online low-E coated glass options, such as Tek15, Tek35, Tek70, Tek180, and Tek250, are designed for use in high-resistance applications such as electric heated freezers and cooler doors.
  • We offer both low-E coated glass panels and processed refrigerator door glass, including varieties like tempered and insulated glass.
  • We ensure high quality with a complete production chain, including 14 float glass lines, an online low-E glass production line with an annual output of 20 million sqm, an offline low-E glass production line with an annual output of 10 million sqm, and two glass processing bases.
  • Our low-E coated glass provides the best technology and performance data, ensuring high energy efficiency and meeting the specific requirements of diverse operational conditions.
  • We are equipped with cutting-edge machinery from Lisec, Bottero, Glaston, and Bystronic, world-renowned suppliers, to guarantee superior quality and performance.
Performance Data
Soft Coated Low-E Glass
VLT (%)
(Single sheet) 		VLT (%)
(IGU) 		Sheet Resistance
 (Ω/□) 		U-Value (W/m2.K)
(Single sheet) 		U-Value (W/m2.K) (IGU-16A) Emissivity (%)
(After Temper)
Air Argon
S1.16 89 82 ≤3.8 2.4 1.44 1.16 0.067
S1.1Plus 88 81 ≤2.8 2.28 1.38 1.1 0.035
D80 80 73 ≤2.1 2.25 1.34 1.08 0.03
Solarban 75 70 ≤0.72 2.18 1.29 1.02 0.02
Hard Coated Low-E Glass
TEK7 TEK10 TEK15 TEK35 TEK70 TEK180 TEK230 TEK250
Thickness 4mm, 3.2mm (±0.1mm)
Visible Light Transmittance (%) ≥80 ≥82 ＞83 ≥83 ＞83 ＞83 ＞83 ＞83
Coating Reflectance (%) ≤11 ≤11 ＜12 ＜12 ＜12 ＜12 ＜12 ＜12
Haze (%) ≤5 ≤1.7 ≤1 < 1 ≤1 ≤1 ≤1 ≤1
Sheet Resistance (Ω/□) Before Temper 6-8 8.0-9.5 12-14 34-38 60-68 180-200 220-270 260-320
E-value% ＜0.10 ＜0.13 ＜0.15 ＜0.35 ＜0.45 ＜0.60 ＜0.63 ＜0.67
Color Uniformity (ΔE*ab) ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8
Insulated Glass
Products Configuration (IGU) Thick
(mm) 		Visible Light U-value
(w/m2.k) 		SHGC (%)
Tvis (%) Rvis (%)
Out In Air Argon
3mm clear +12A +3mm clear 18 83 16 16 2.7 2.55 0.78
3mm soft Low-E (S1.16) +12A +3mm clear 18 82 13 13 1.71 1.4 0.61
3mm soft Low-E (S1.1Plus) +12A +3mm clear 18 81 15 14 1.64 1.32 0.56
3mm hard Low-E (TEK15) +12A +3mm clear 18 78 18 18 1.91 1.67 0.73
3mm clear +16A +3mm clear 22 83 16 16 2.69 2.56 0.78
3mm soft Low-E (S1.16) +16A +3mm clear 22 82 13 13 1.45 1.2 0.61
3mm soft Low-E (S1.1Plus) +16A +3mm clear 22 81 15 14 1.38 1.1 0.56
3mm hard Low-E (TEK15) +16A +3mm clear 22 78 18 18 1.94 1.71 0.73
4mm clear +12A +4mm clear 20 82 16 16 2.83 2.71 0.76
4mm soft Low-E (S1.16) +12A +4mm clear 20 80 14 14 1.71 1.42 0.6
4mm soft Low-E (S1.1Plus) +12A +4mm clear 20 80 15 15 1.64 1.33 0.56
4mm hard Low-E (TEK15) +12A +4mm clear 20 77 17 17 1.94 1.69 0.73
4mm clear +16A +4mm clear 24 82 16 16 2.68 2.63 0.76
4mm soft Low-E (S1.16) +16A +4mm clear 24 80 14 14 1.47 1.22 0.65
4mm soft Low-E (S1.1Plus) +16A +4mm clear 24 80 15 15 1.39 1.10 0.65
4mm hard Low-E (TEK15) +16A +4mm clear 24 76 17 17 1.73 1.52 0.68
Certificates
  • PPG
  • CE
  • CIDB
  • ISO
  • SGS
  • REACH
